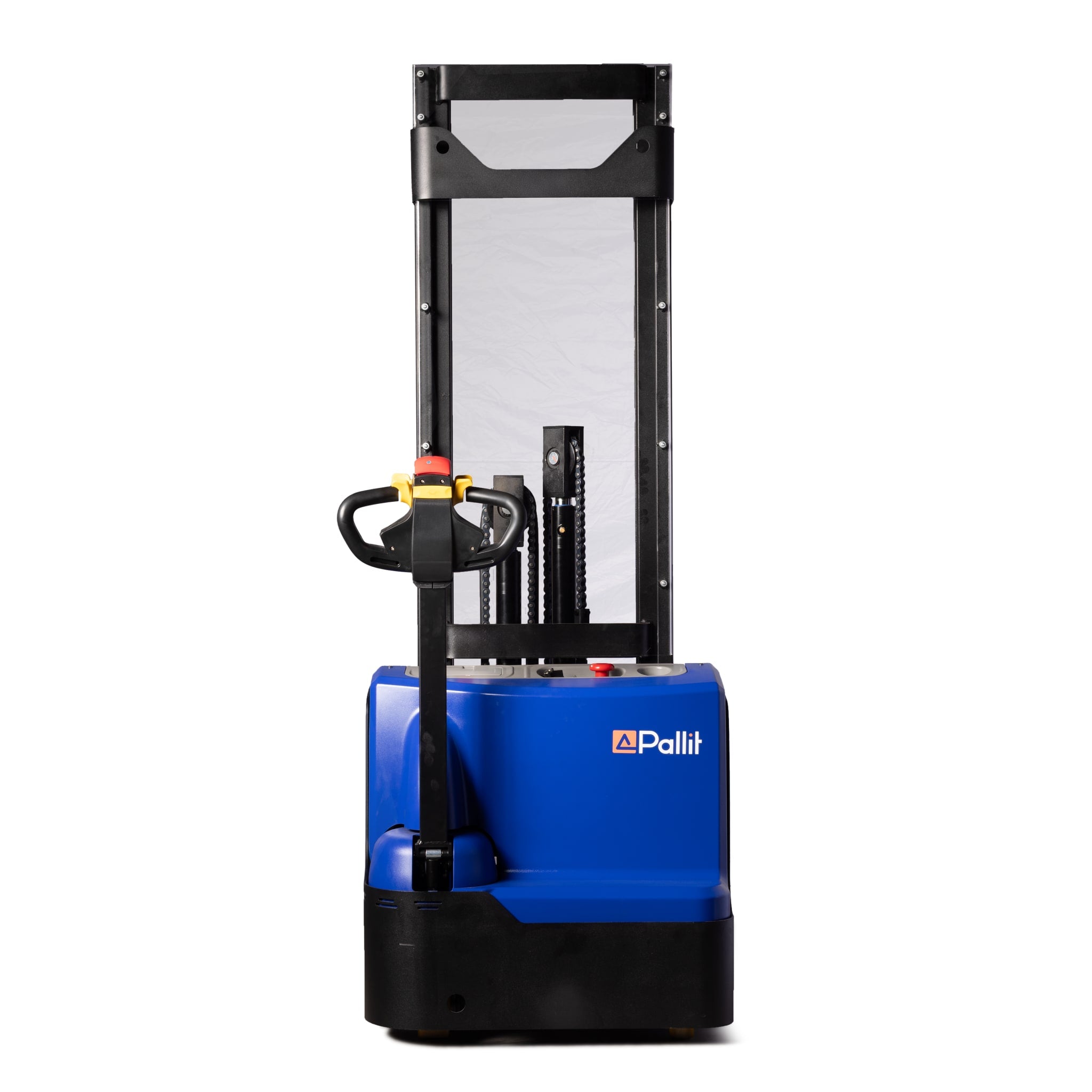

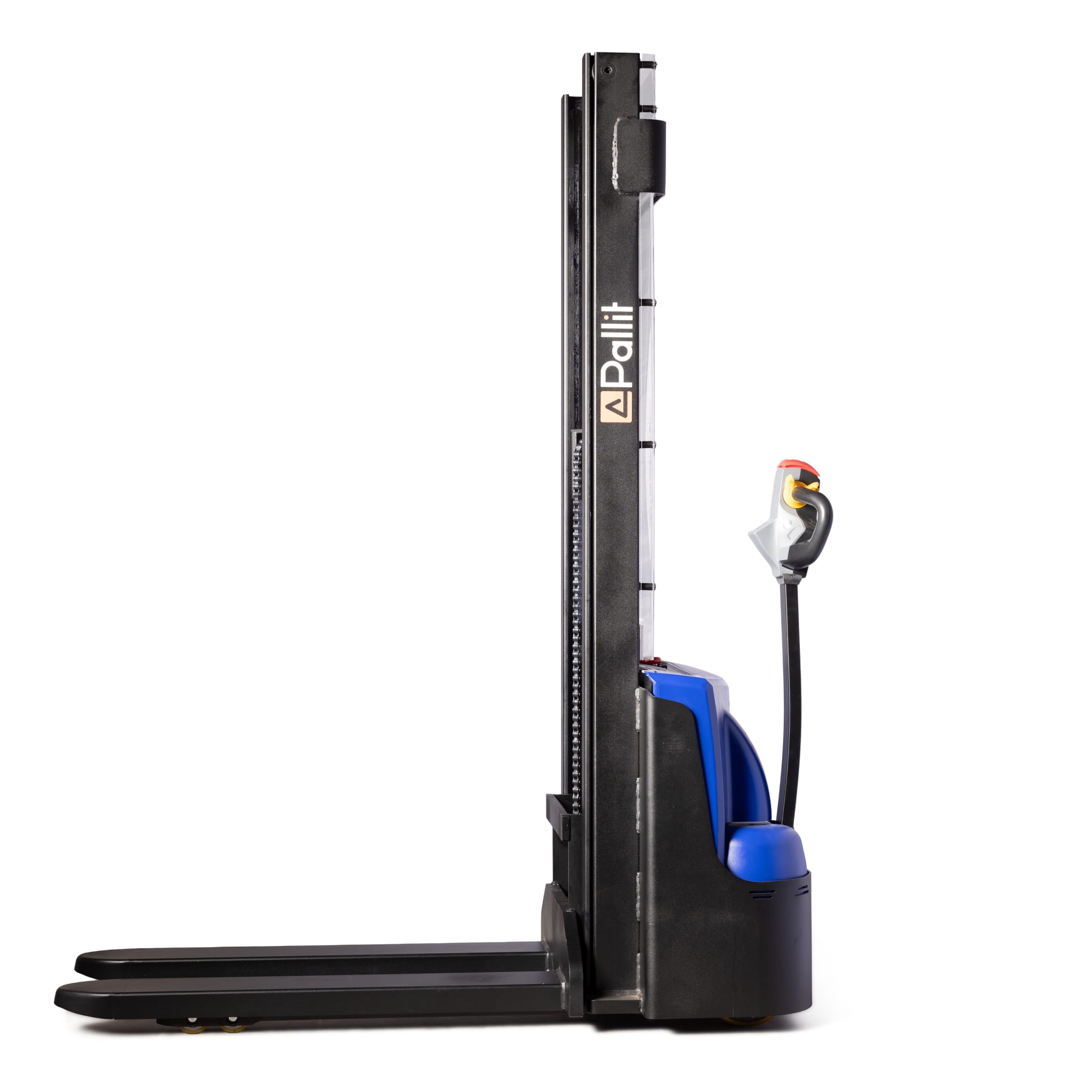

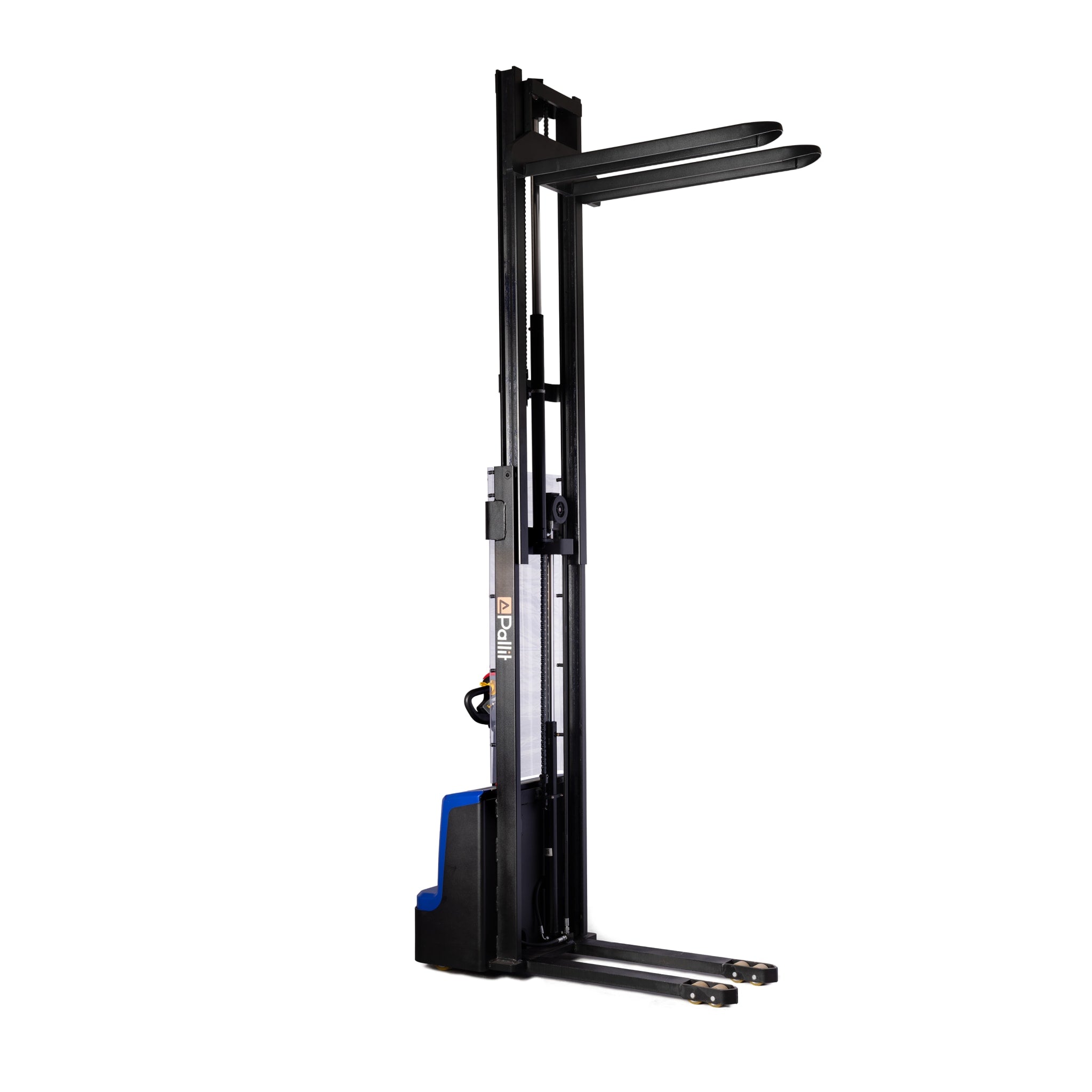

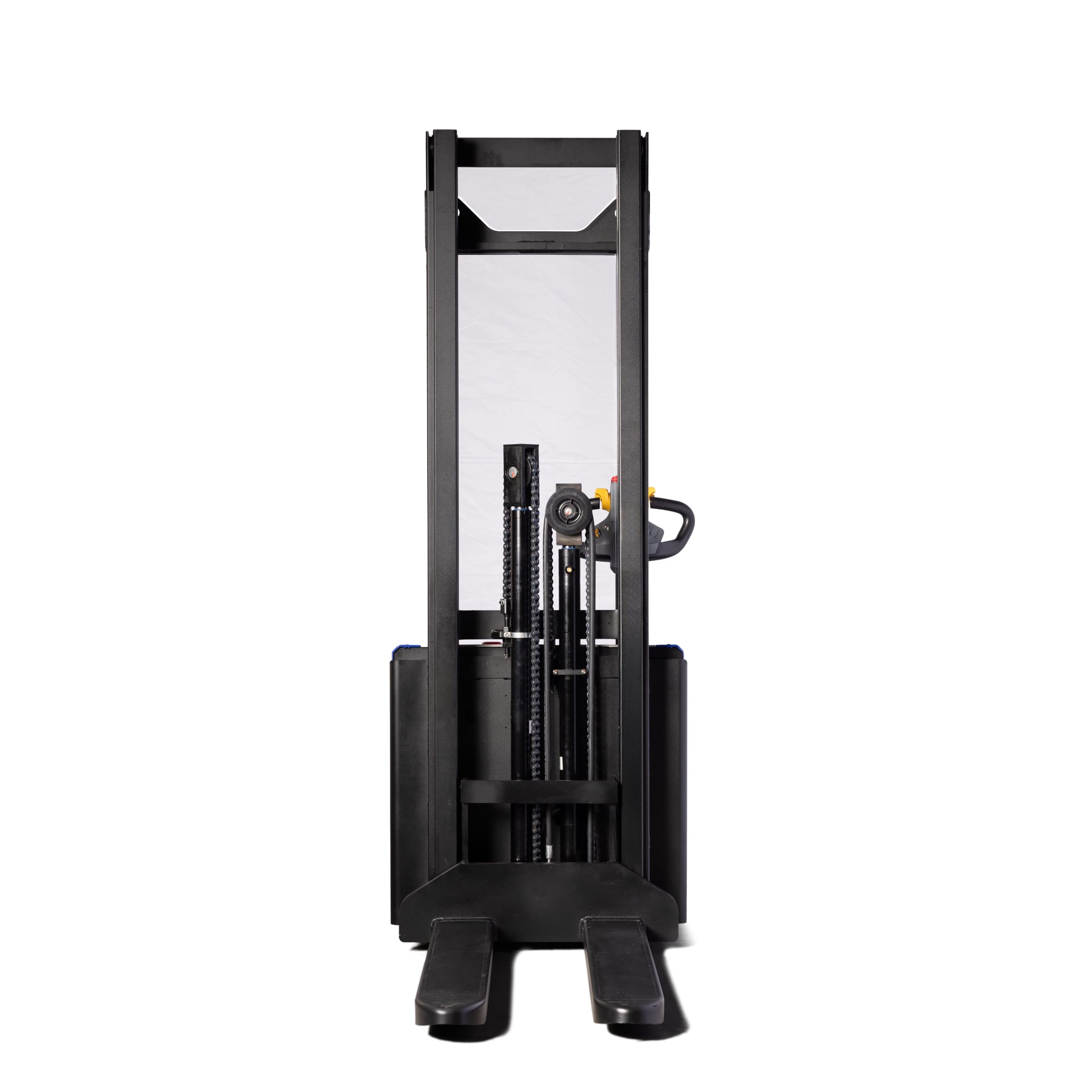

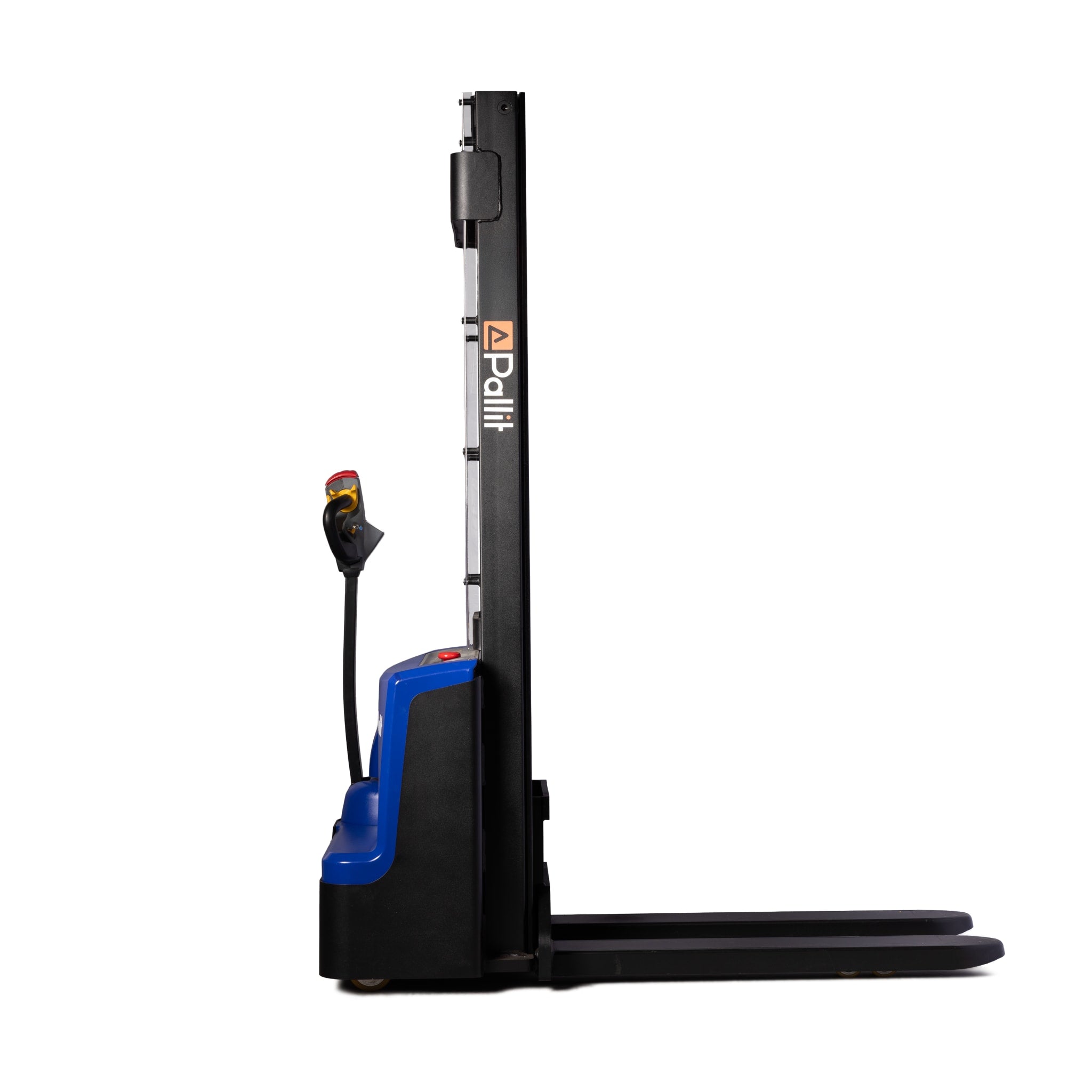

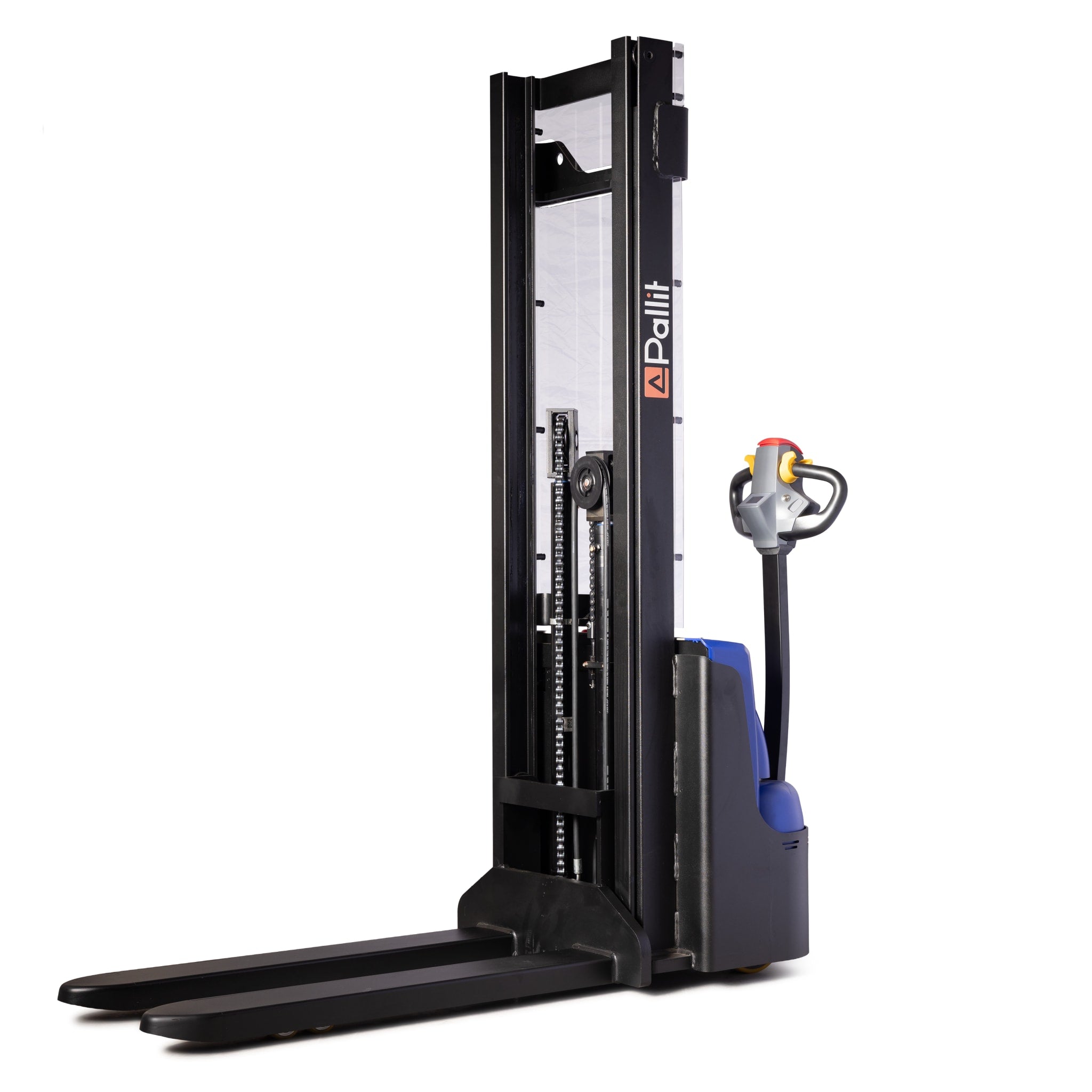

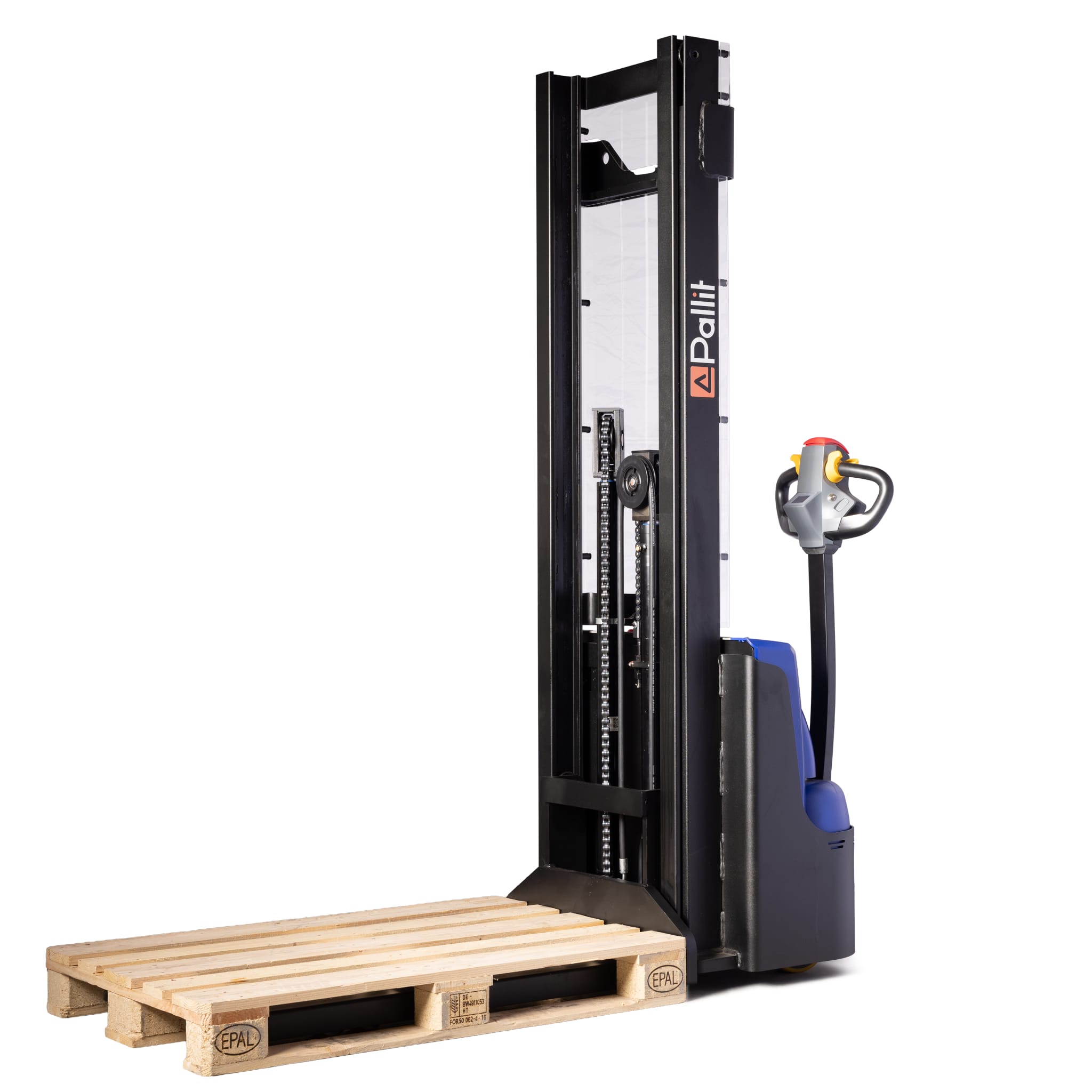

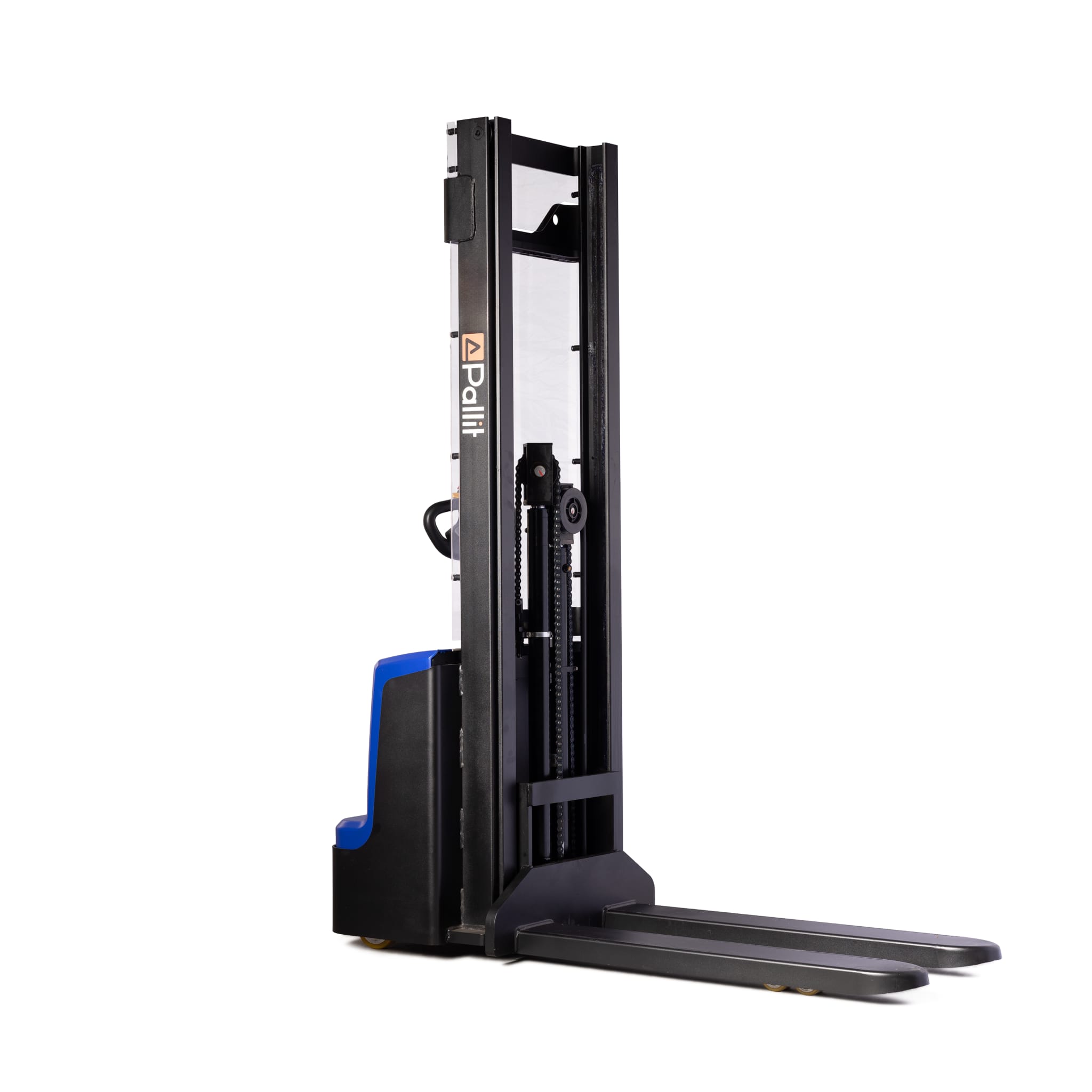

Pedestrian stacker PRECISE with proportional lift and full free lift

Pedestrian stacker PRECISE with proportional lift and full free lift

A highly affordable high lift truck with pro features for precise load handling up to 1200 kg
New
4.090,00 € 4.948,90 € VAT included
5
Five year warranty
+
Options

Available from: Friday, 18 April

SKU 10011547-304

Questions? We’re here to help you

0800 20167

This electric pallet stacker with proportional lift and full free lift offers maximum flexibility and precision. It is a powerful helper for daily material transport of up to 1,200 kg.

  • Proportional lift function: for precise lifting and lowering
  • Free lift function: Raise the fork up to 1.3 m without the mast raising - ideal for low ceilings or doors
  • Load capacity: up to 1,200 kg
  • Battery: Powerful AGM batteries with 71 Ah capacity
  • Charging: Simply plug the integrated power cable into any 230V socket
  • Visibility: Plexiglass panel ensures the best visibility during use
  • Use: Stacking, storing, loading and transporting pallets indoors

Features

proportional stroke function

This allows you to lift and place the pallet gently and precisely at any height.

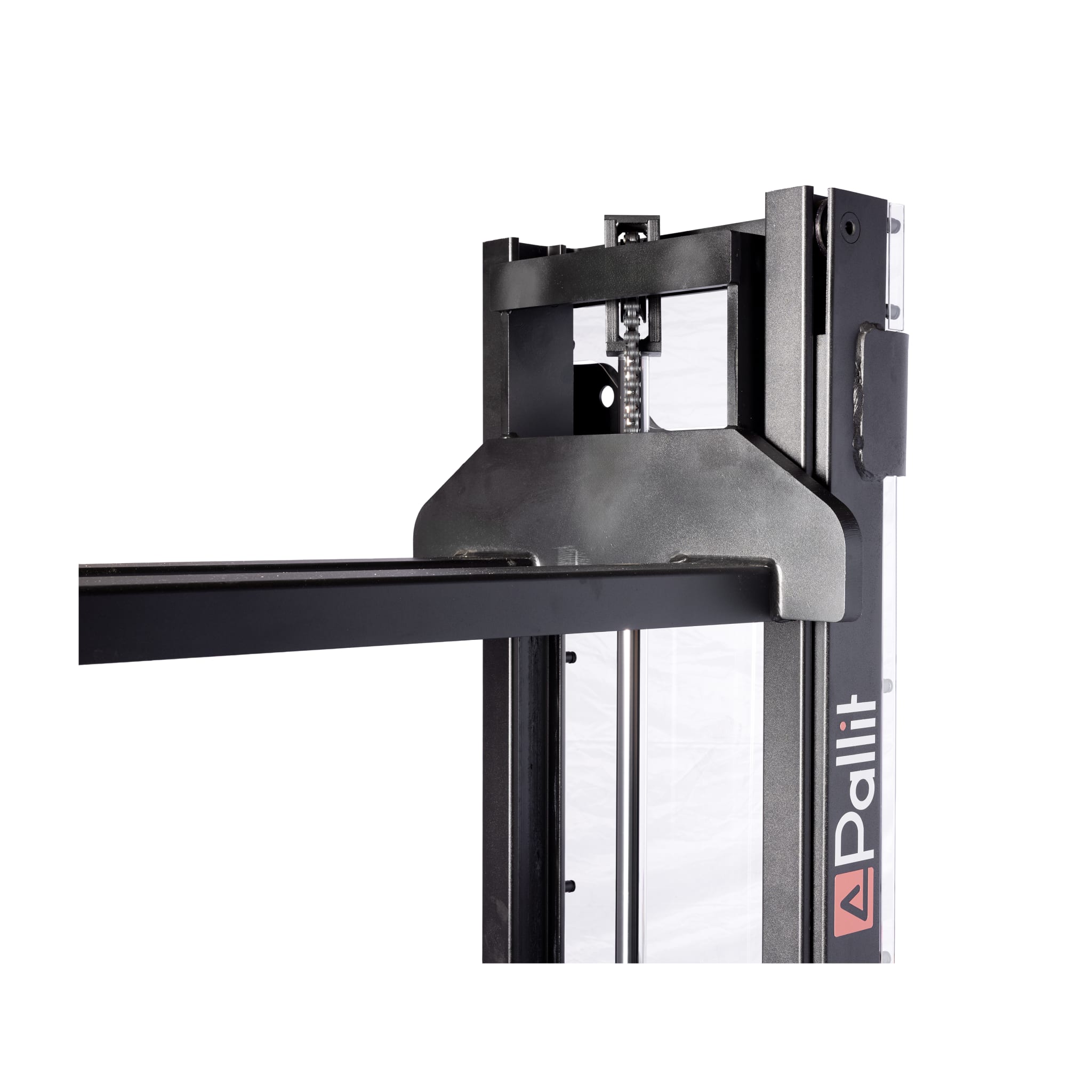

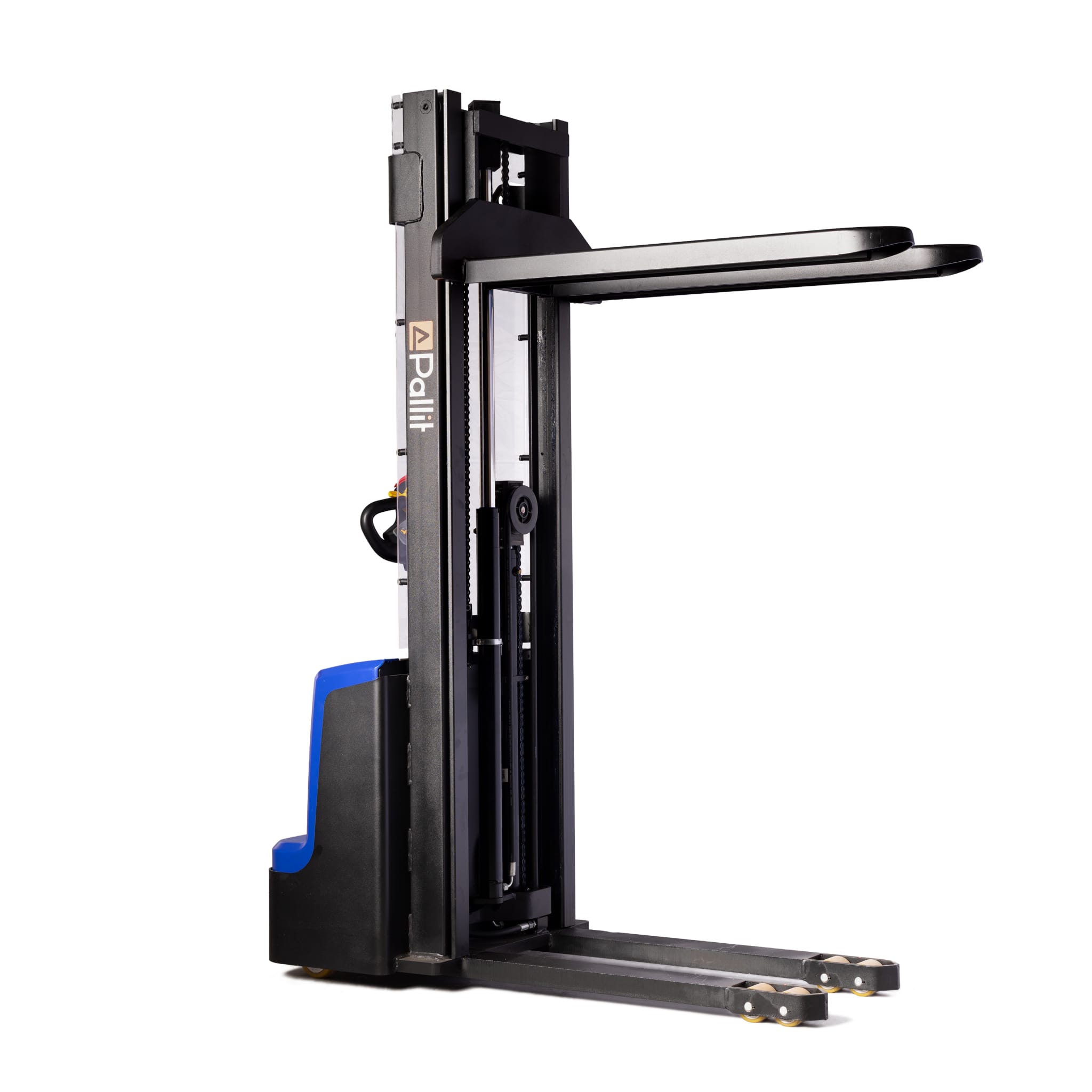

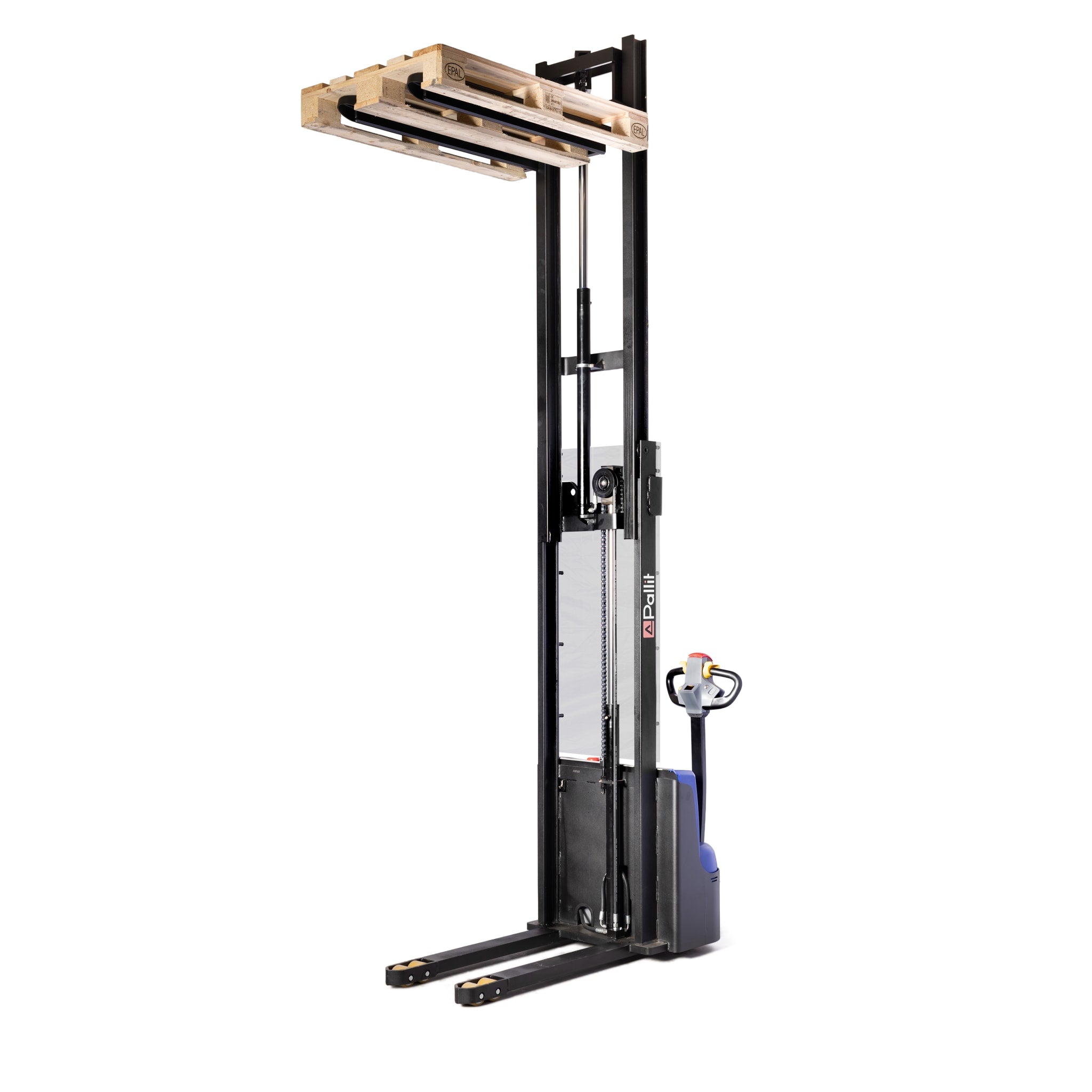

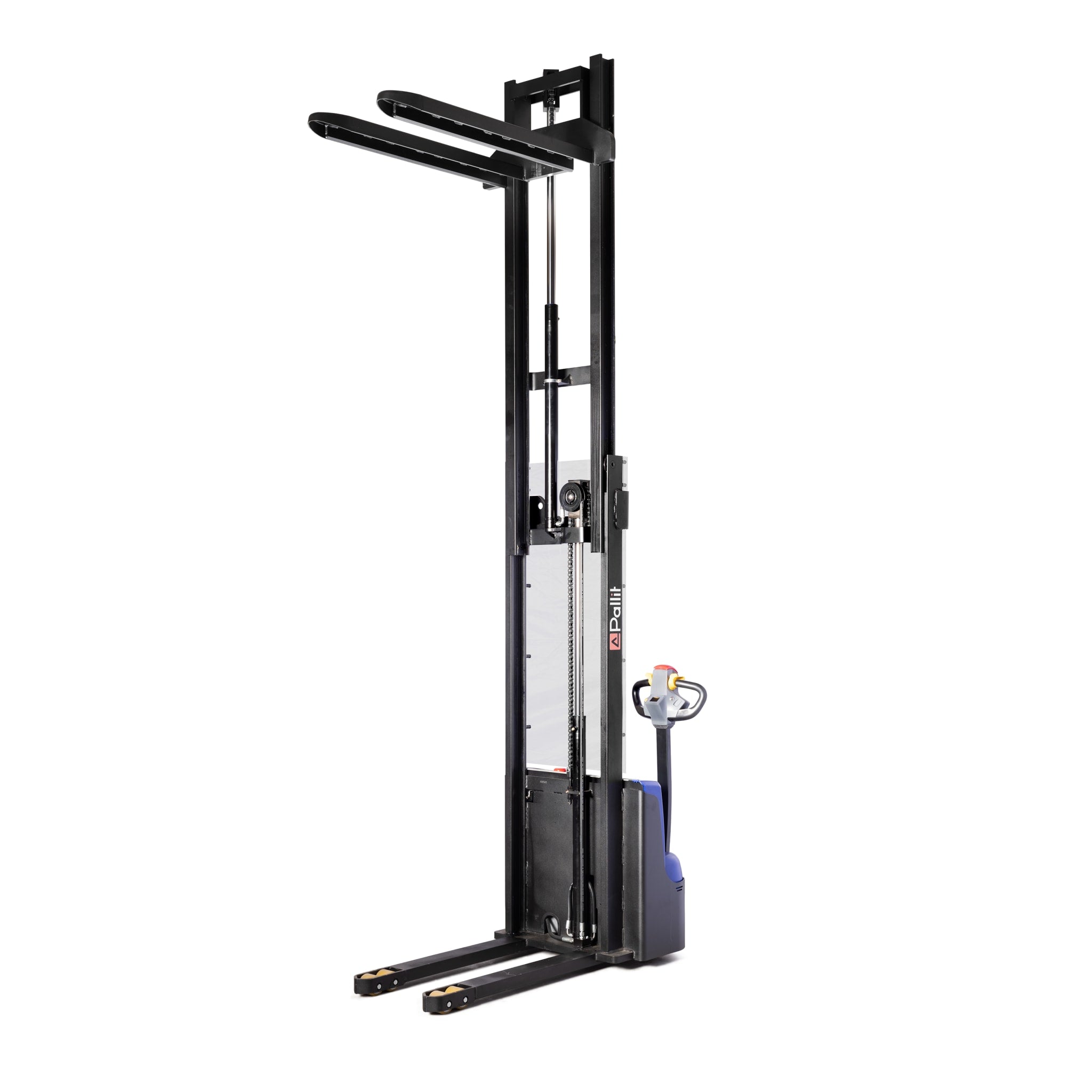

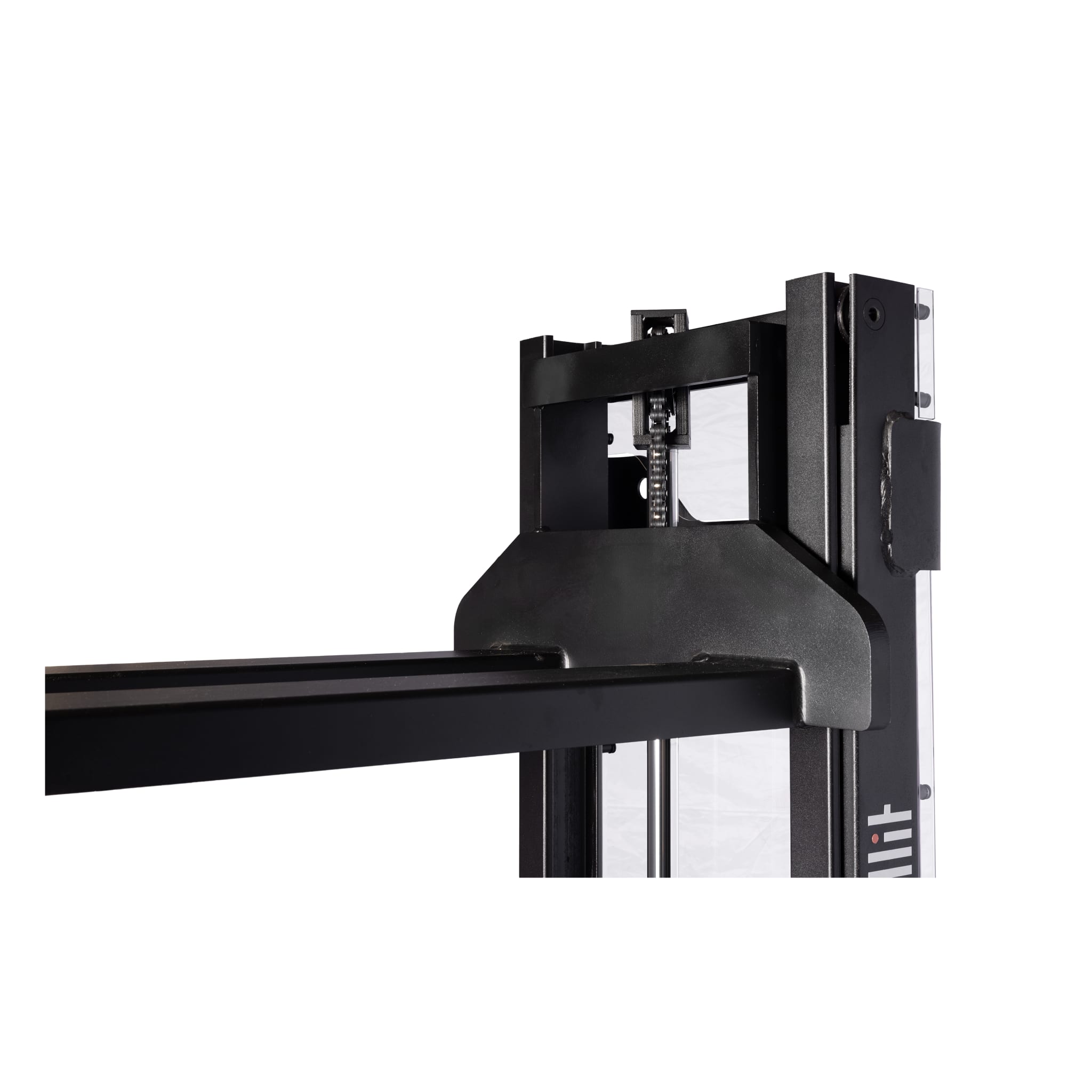

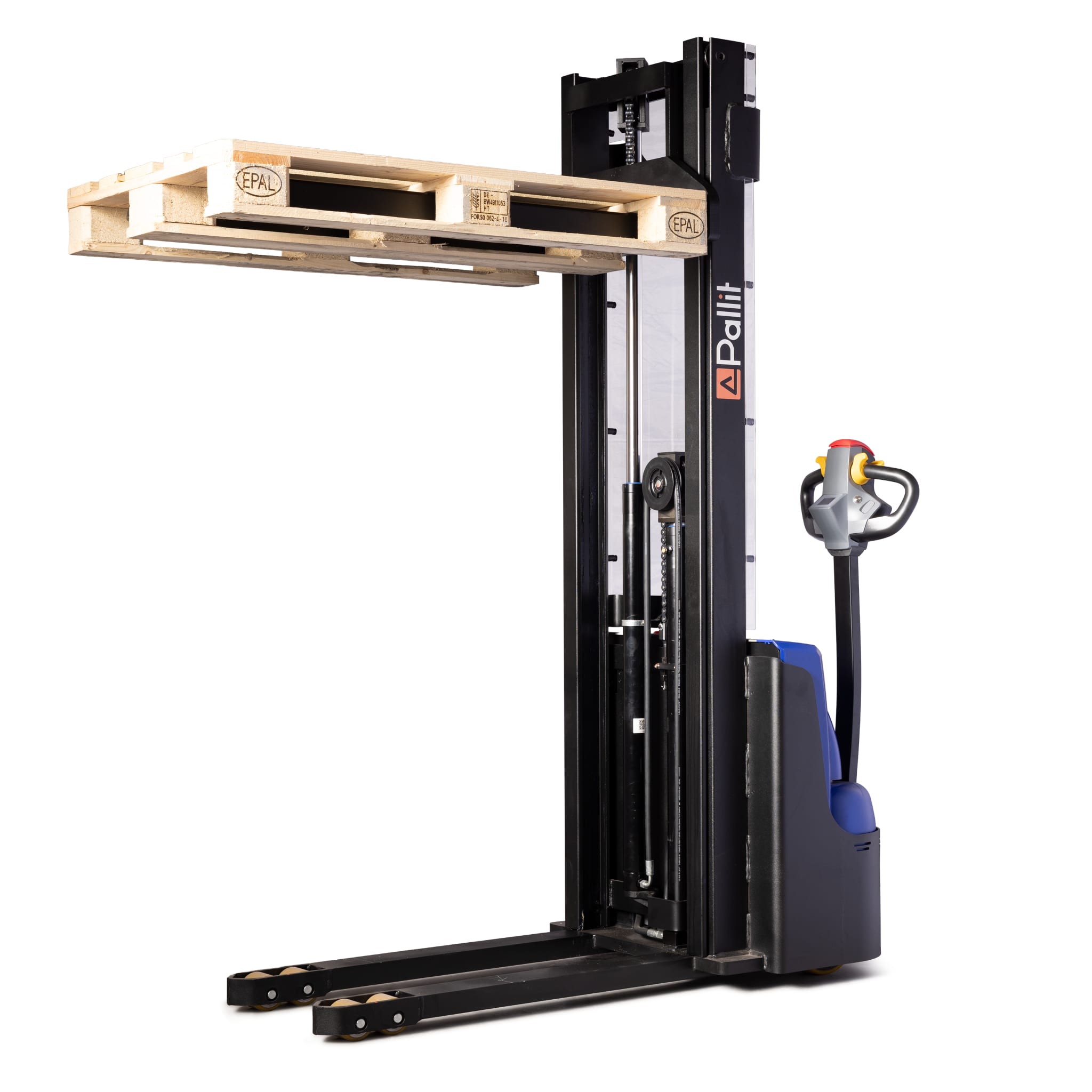

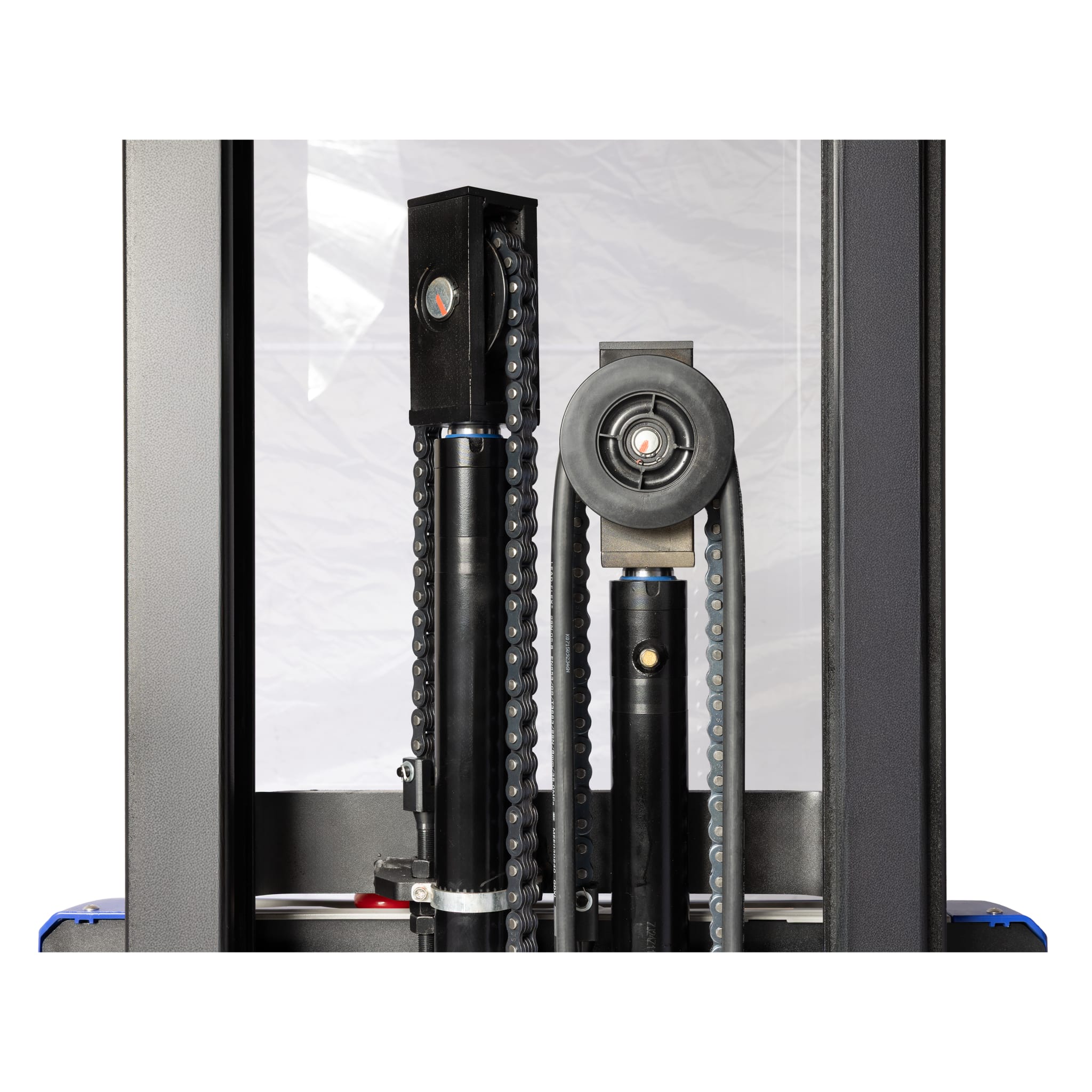

free lift function

Allows the fork to be lifted up to 1.3 m without the mast rising - ideal for low ceilings or doorways.

Strong load-bearing capacity

With a load capacity of up to 1,200 kg, perfect for daily material transport.

Powerful AGM battery

The maintenance-free 71 Ah AGM battery delivers strong performance and is ideal for intensive use.

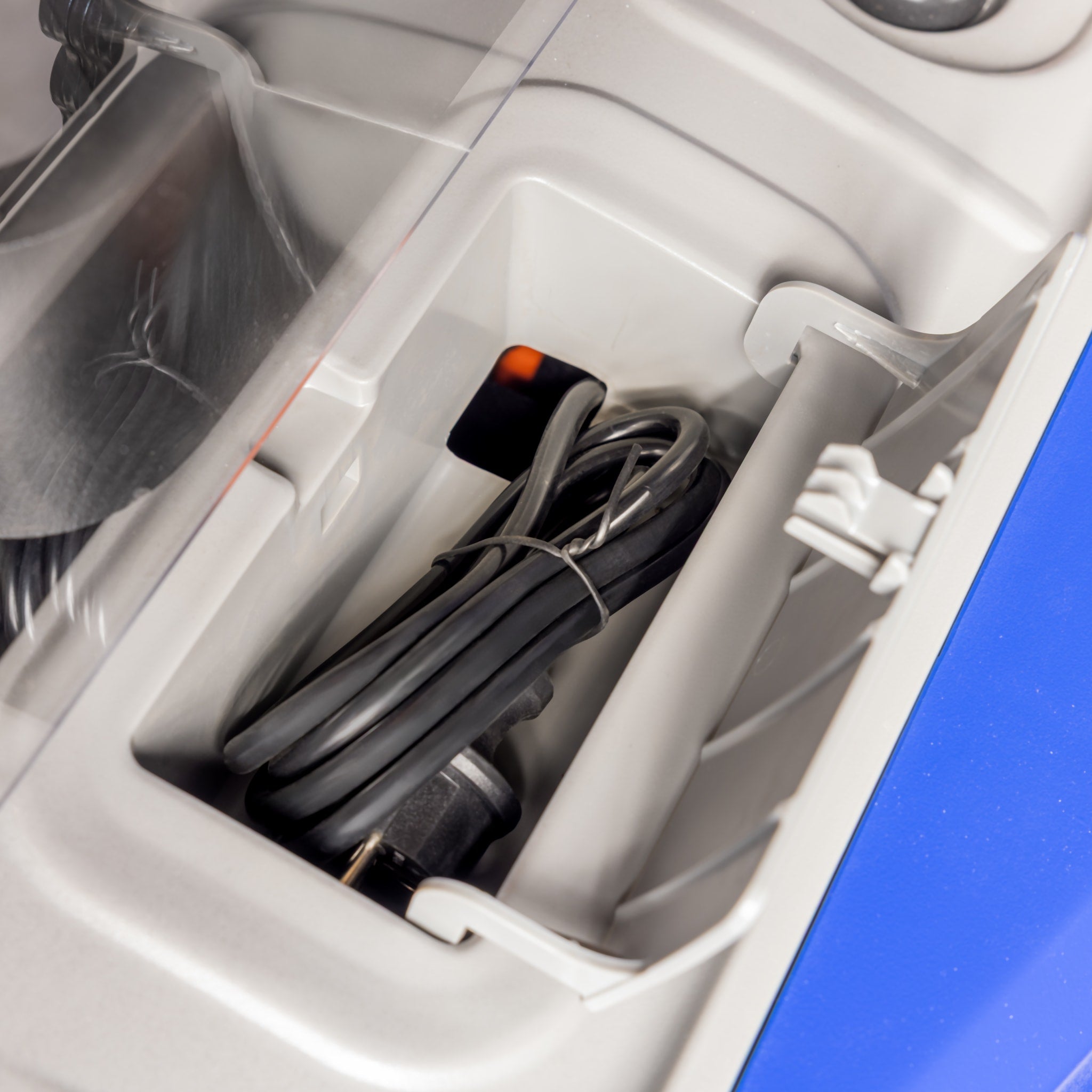

Easy loading

Thanks to the integrated power cable, the device can be conveniently charged at any 230V socket.

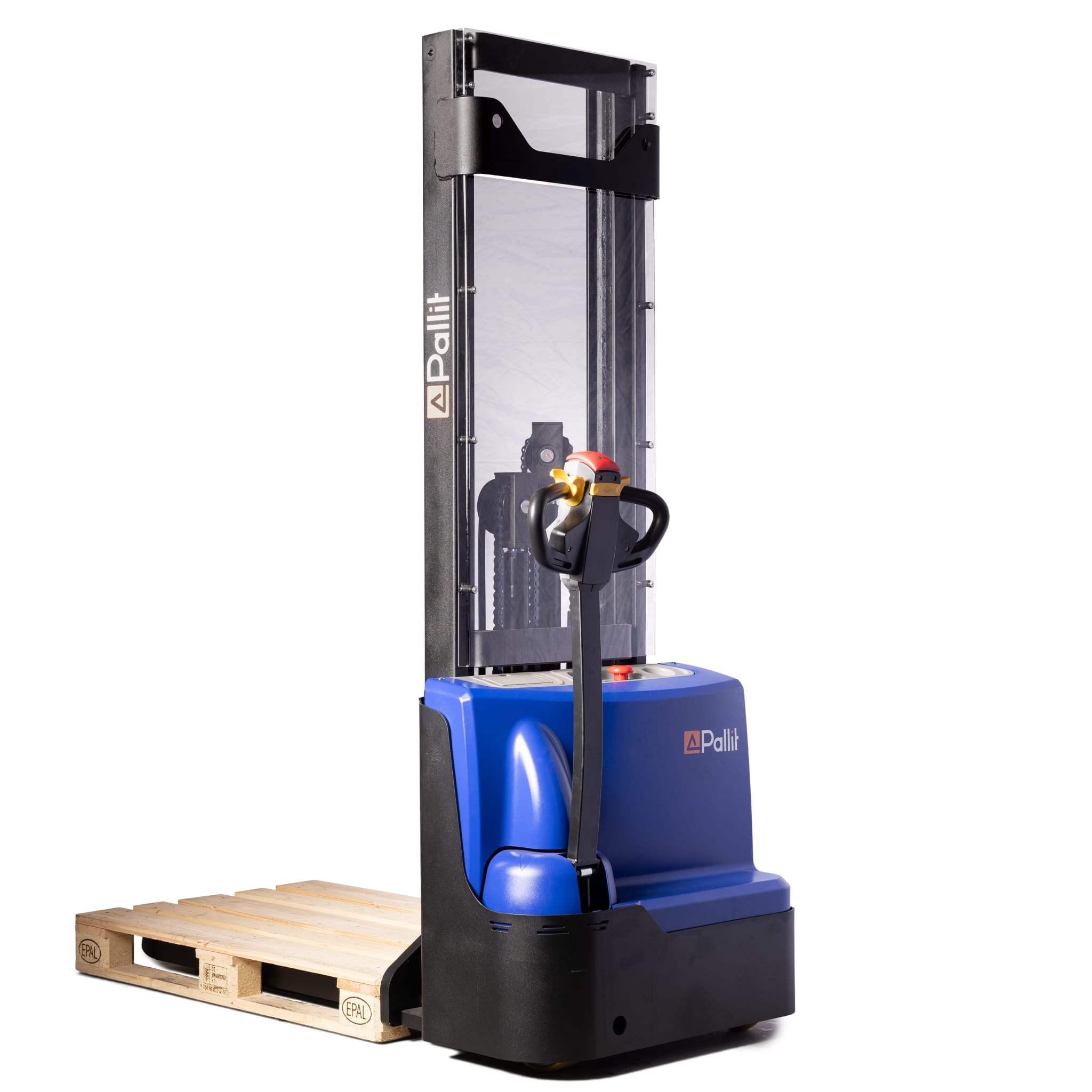

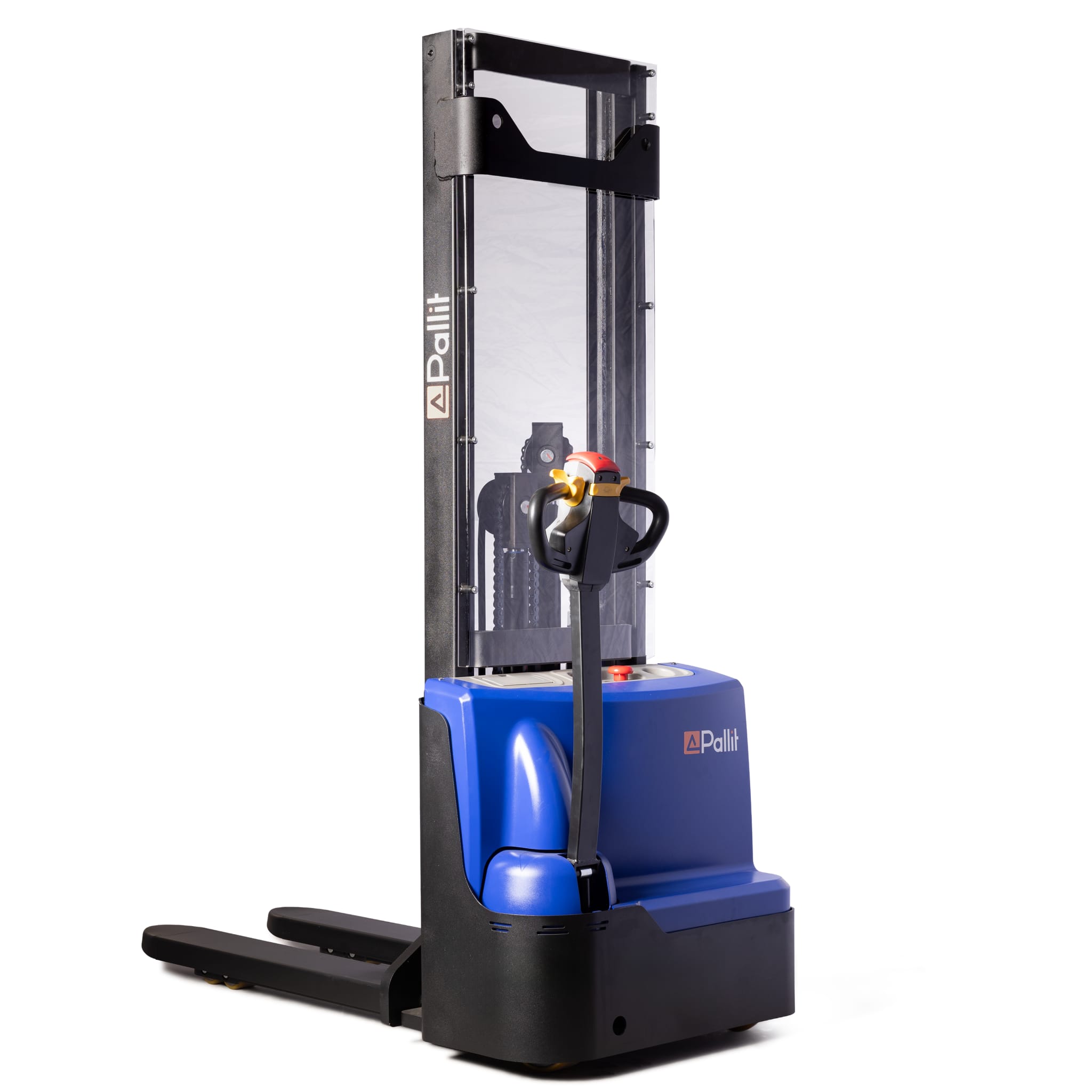

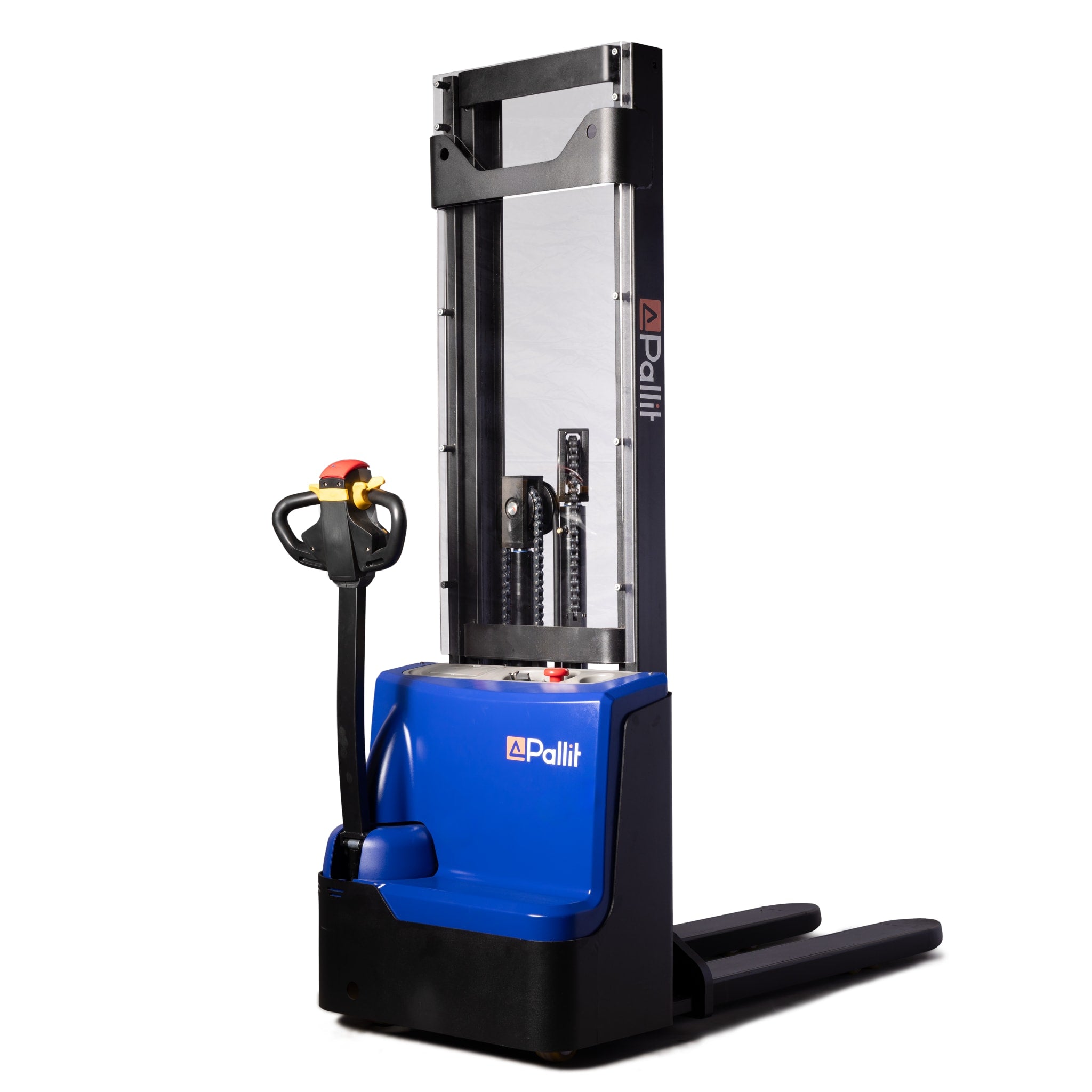

Clear view through plexiglass pane

The plexiglass pane offers optimal visibility of the load and surroundings for greater safety when working.

Technical data

General
Capacity
1200 kg
Weight
580 kg
Material
steel
Chassis surface
powder coated
Colour
blue
SKU
10011547-304
Brand
Pallit
Wheels
Wheels material
polyurethane
Steering wheel diameter
210 mm
Steering wheel width
70 mm
Load roller wheel diameter
80 mm
Fork roller width
70 mm
Lift
Lift height
2500 mm
Free lift
yes
Free lift height
1300 mm
Lift motor power
2,5 kW
Lift speed, unladen
0,22 m/s
Lowering speed, unladen
0,25 m/s
Mast type
Duplex
Lift type
electric
Drive
Drive motor power
0,75 kW
Travel speed, unladen
4,5 km/h
Drive
electric
Brake
electromagnetic brake
Battery
Battery type
Blei-Vlies-Batterie (AGM)
Battery capacity
71 Ah
Voltage
24 V
Battery voltage
12 V
Battery quantity
2
Battery charger
integrated
Delivery
Delivery
Special transport
Delivered as
on pallet
Delivery requirements
Access road accessible for trucks (40t)
Links

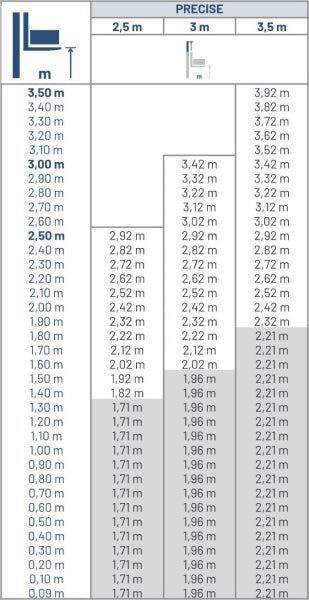

Capacity chart

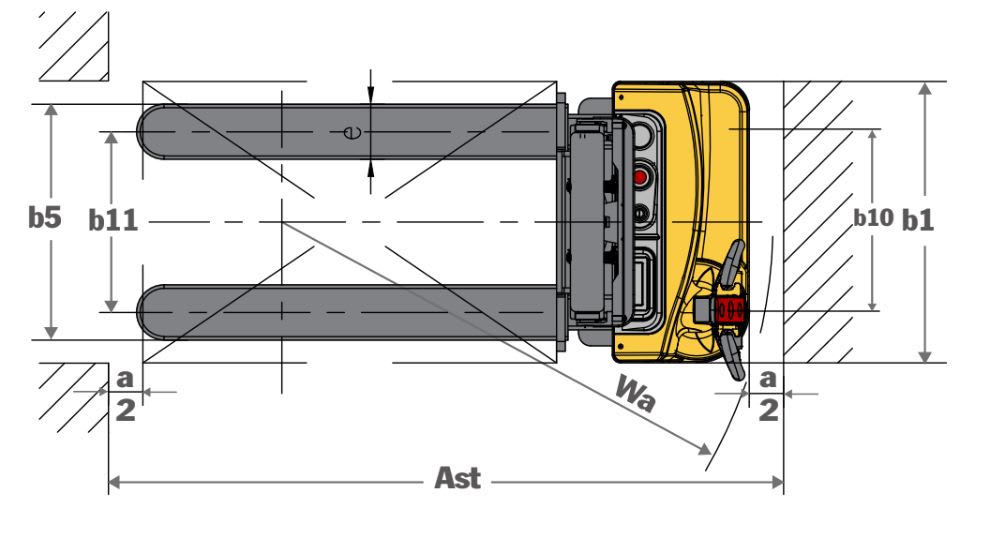

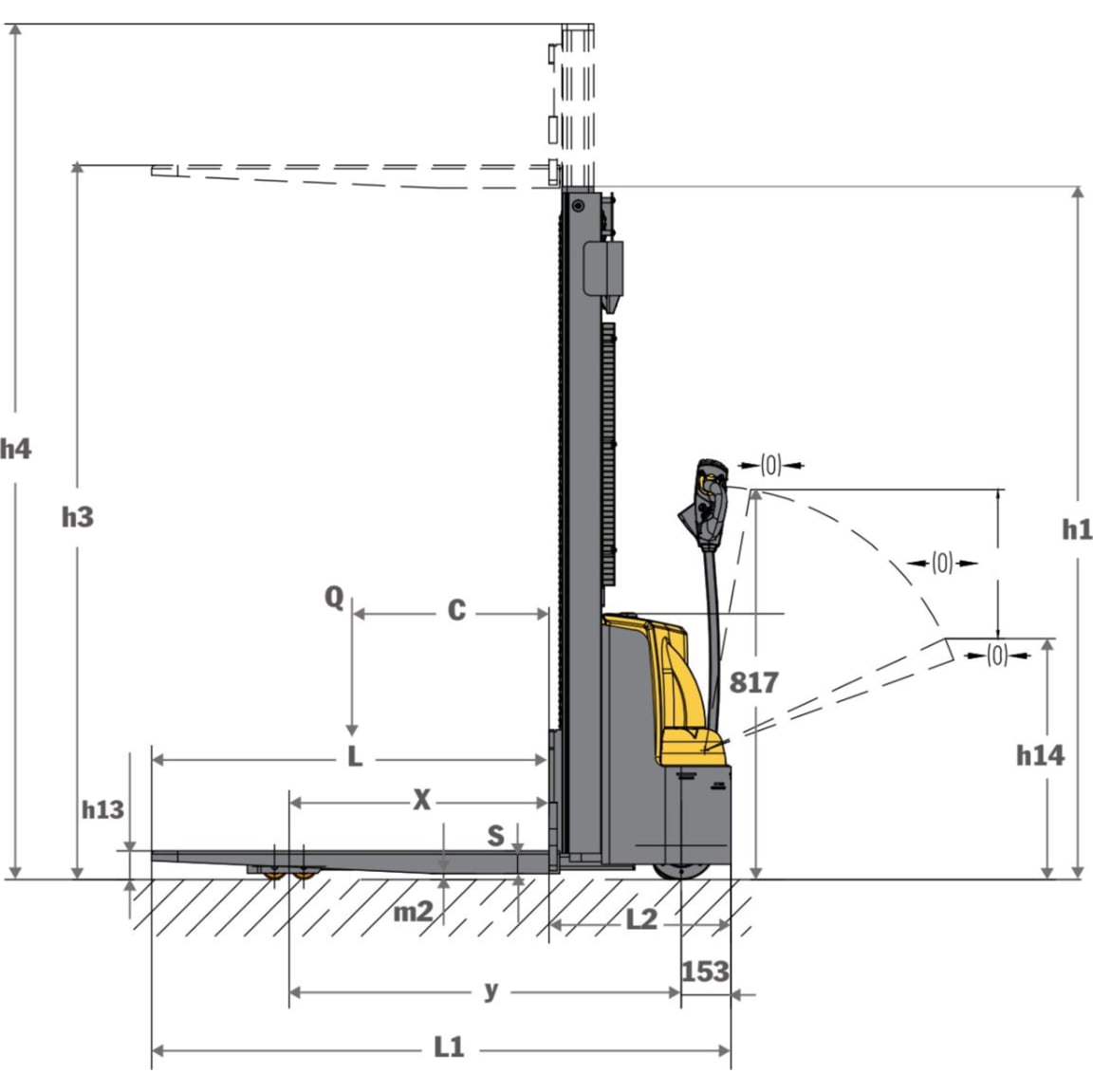

Dimensions

  • Capacity
    Fork length
    Free lift height
    Height, lowered
    Lift height
    Weight
    Wheels material
    Battery capacity
    Battery type
    Load centre
    Free delivery
    Customer Reviews
    Price

  • Pedestrian stacker PRECISE with proportional lift and full free lift

    1200 kg
    1150 mm
    1300 mm
    1710 mm
    2500 mm
    580 kg
    polyurethane
    71 Ah
    Blei-Vlies-Batterie (AGM)
    600 mm
    Monday, 21 April
    from 4.090,00 € 4.948,90 € VAT included
